Constraint Studio

Elevate plan

Constraint Studio is the rule editor behind PO hints and the constraint optimizerConstraint optimizerA PO detail tool that builds a proposed additive plan from configured constraint rules. In Fill gaps mode, it can increase existing lines or add eligible variants; you confirm before anything is applied. Elevate-plan feature.Read more →. You configure business rules in a guided workflow; the technical graph is still available through Advanced graph for inspection and power-user changes.

Constraint Studio with compact readiness chips for semantic roles
The readiness chips show which semantic roles are already mapped from Product Settings or Data Modeling.
  • What a rule controls
  • Constraint readiness
  • Presets
  • Rule metadata
  • Field binding
  • Preview and save
  • Advanced graph nodes
  • Where rules appear on POs
  • See also

A constraint rule can:

  • Show line or PO-level hints when a PO is below MOQ, not in pack multiples, over budget, missing a group, or missing required data.
  • Act as an optimizer target, so the optimizer tries to close the gap by adding eligible variants or increasing existing lines.
  • Add an optimizer objective, so an already-valid plan is ranked toward a better fill or capacity outcome.

Rules are evaluated for Draft and Sent POs only. Other PO statuses keep their saved data, but active constraint rules do not apply there.

The readiness section checks whether common semantic roles are mapped:

Role Used by
Group key Group exact count, group minimum total, group coverage.
Unit CBM PO max CBM, container fill, capacity blocks.
Unit weight PO max weight and weight-based capacity rules.
Case size Case-size and multiple-based planning.
Pallet quantity Pallet or block-capacity planning.
Purchase family Coverage, bundle, and family-based rules.
Product MOQ Product-level MOQ summed across variants.

Mapped roles can come from Product & variant attributes or from Data Modeling semantic mappings. Hover a readiness chip to see the exact field source. Missing roles do not block saving every rule, but presets that need that role ask you to bind a field manually.

Click Add rule to open the preset picker.

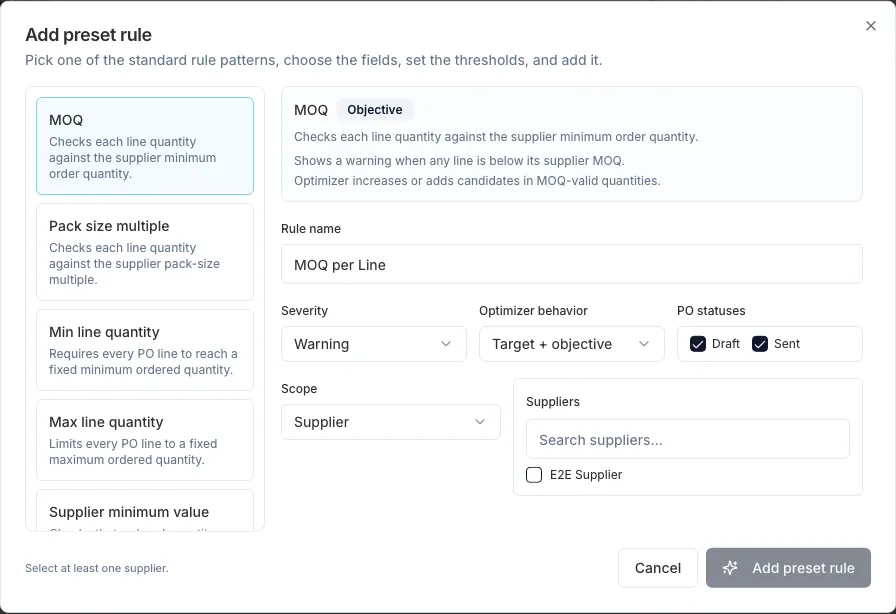

Constraint preset picker showing MOQ and other rule presets
Start from a business preset whenever possible; use Advanced graph only for special cases.

The current presets are:

Preset What it checks Optimizer behavior
MOQ Each line meets supplier-variant MOQ. Can increase/add lines to meet MOQ.
Pack size / multiples Each line is a valid pack multiple. Final suggested quantities must respect multiples.
Min line quantity Every line reaches a fixed minimum. Can increase lines.
Max line quantity Every line stays under a fixed maximum. Fill gaps cannot reduce lines, so this appears as a warning/limit.
Supplier minimum value PO value reaches a supplier minimum. Can add/increase eligible lines.
Supplier minimum units Total ordered units reach a supplier minimum. Can add/increase eligible lines.
PO budget cap PO value stays under a cap. Fill gaps cannot reduce an over-budget PO.
PO max units Total ordered units stay under a cap. Hard limit for additive plans.
PO max CBM Ordered units times unit CBM stay under a cap. Hard limit when the rule is a target.
PO max weight Ordered units times unit weight stay under a cap. Hard limit when the rule is a target.
Container fill target Total capacity measure reaches a target. Adds a fill objective.
Exact group count PO contains exactly the required number of groups. Evaluates group count; additive fixes depend on candidate data.
Minimum units per variant Every active variant reaches a shared minimum. Can increase/add eligible variants.
Minimum total per group Every active group reaches a summed minimum. Can increase/add lines in underfilled groups.
Product MOQ All variants of each product are summed and compared to a product-level MOQ field. Can increase/add variants until product MOQ gaps are filled.
Group coverage Active groups cover available supplier variants in the same group. Can add missing variants from uncovered groups.
Ratio / bundle A numerator measure divided by a denominator measure reaches a minimum ratio. Evaluates the ratio; additive fixes depend on candidate data.
Fill capacity blocks Current capacity block is underfilled and should move toward the next full block. Objective-only by default.

Every guided rule has the same high-level settings:

Setting Behavior
Name Merchant-facing rule name shown in settings, PO hints, and optimizer reasons.
Enabled Disabled rules are saved but ignored.
Scope General applies to all POs. Supplier scope applies only to selected active suppliers.
Statuses Only Draft and Sent are valid active statuses. At least one must be selected.
Severity Controls the PO hint tone: Info, Warning, or Error. It does not by itself make a rule hard.
Optimizer target Makes the optimizer treat the rule as a target/limit. Warning-only rules still show hints but are not a target.

Some presets can use built-in PO fields immediately. Others need a field binding:

  • Product MOQ needs a product identity field, ordered units, and a product-level MOQ field.
  • CBM and weight rules need a per-unit Number field.
  • Group rules need a group key or purchase family field.
  • Ratio rules need two numeric fields.

Constraint Studio suggests fields from semantic roles first. It does not silently bind an unsafe field when the role or type does not match; choose the field explicitly if the suggestion is missing.

Product MOQ preset with product identity, ordered units, and Product MOQ field bindings
One Product MOQ rule can use a product-level attribute value for every product instead of hard-coding thresholds per product.
PO max CBM preset with a Unit CBM field and maximum CBM threshold
Capacity rules multiply ordered quantity by a per-unit measure such as Unit CBM.

Before saving, preview a rule against sample data or a real PO. Real-PO preview is the best check because it uses your PO lines, supplier, fields, and current saved values.

Preview and evaluation do not change PO quantities. They return pass/fail state, severity, and missing-data reasons such as missing Product MOQ, Unit CBM, Unit weight, Group key, or Purchase family.

Settings saves are versioned. If another tab changes the constraint settings first, Logistified rejects the stale save and asks you to reload instead of overwriting someone else’s rules.

Guided presets compile to a technical graph. Most teams never need to edit it, but it is useful for debugging.

Dataset What it contains
line_items Current PO lines after data-quality exclusions. Use this for normal rule checks.
all_line_items Current PO lines before exclusions. Use this when the rule itself must report missing data.
supplier_variants Eligible supplier catalog variants, including variants not yet on the PO.
combined_line_items Current PO lines plus simulated optimizer additions.
candidate_line_items Only simulated optimizer candidate rows.
Node Input -> output Main settings
meta.rule None -> metadata Internal rule metadata; not needed in guided rules.
source.po None -> object Current PO context: header fields, current lines, supplier variants, optimizer candidates. A normal graph has one.
source.dataset None -> dataset Reads a named dataset. This is valid for legacy/advanced graphs but hidden from the normal library.
source.field None -> scalar Reads one field path, for example line_item.quantityOrdered or a mapped Product Settings/Data Model field.
source.value None -> scalar Static text, number, boolean, or date value.
transform.extract PO object/dataset -> dataset or scalar Selects line_items, all_line_items, supplier_variants, combined_line_items, candidate_line_items, or a nested PO field.
transform.filter Dataset + optional compare input -> dataset Filters rows by field path, operator, and right value.
transform.map Dataset -> dataset Adds or replaces a row value. Modes: copy field, write constant, or calculate math into an output field.
transform.group_by Dataset -> grouped dataset Groups rows by a field such as product ID, variant ID, group key, or purchase family.
transform.aggregate Dataset/grouped dataset -> scalar or grouped values sum, count, distinct_count, min, max, avg; grouped input returns one result per group.
transform.set_operation Dataset -> scalar/set/boolean distinct_values, distinct_count, cardinality_in_set, contains_all, contains_any.
logic.math Scalars -> scalar +, -, *, /, min, max, ceil, floor, round, abs. Used for ratios and capacity blocks.
logic.compare One or two values -> boolean >=, >, <=, <, ==, !=, contains, not_contains, in_set, before, after; pack-size presets also generate multiple_of.
logic.group_compare Grouped left + grouped/right limits -> boolean Compares each group to its own limit. Missing-right behavior can fail, ignore, or use a default. Product MOQ uses this node.
logic.boolean Booleans -> boolean and, or, not, xor.
logic.date Dates -> scalar or boolean before, after, diff_days.
logic.quantifier Dataset -> boolean Requires all, any, or none of the rows to satisfy a row comparison. Line MOQ and min/max line quantity use this.
logic.coverage Current rows + universe rows -> boolean Checks whether PO groups/variants cover the available supplier universe. Can check only groups already present or the full universe.
output.finding Boolean -> PO hint/badge Emits pass/fail text, severity, affected fields, affected variants/groups, and missing-data details. It never changes PO data.
output.optimizer_score Scalar -> optimizer objective Adds a numeric ranking signal for candidate plans. Hard feasibility still wins over score.

Malformed graphs, cycles, missing nodes, wrong input/output types, missing source.po, and finding outputs that are not driven by logic nodes are rejected. Use the guided workflow unless you need a graph-level rule.

Saved rules appear in three places:

  • The Constraints column on PO line items.
  • Purchase-order hints in the guided PO preview area.
  • The Optimize dialog, where target rules, remaining reasons, and proposed actions are explained.
Purchase order line items with a failing Product MOQ constraint badge on two variants of the same product
This Product MOQ example counts two variants of the same product together. Both rows are marked because the combined ordered units are still below that product's MOQ value.
